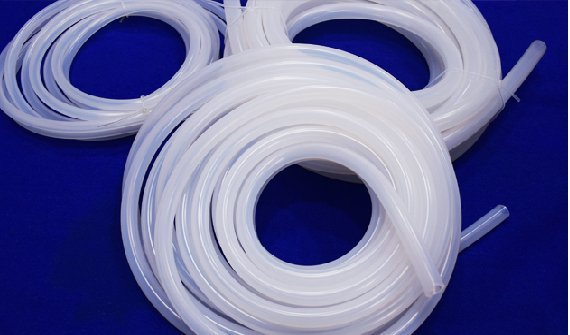

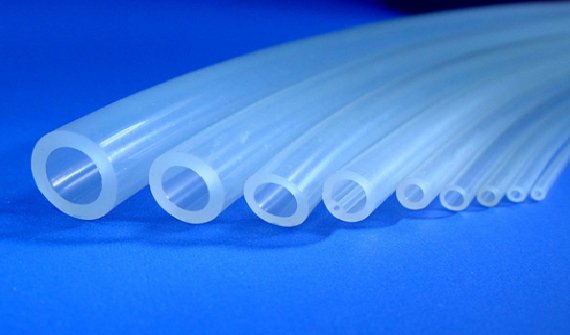

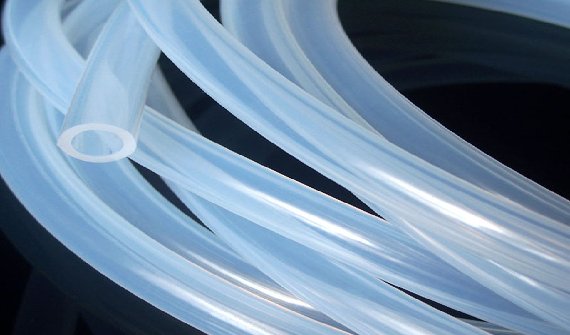

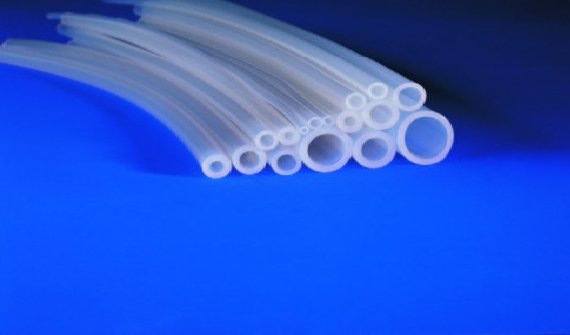

Peroxide Cured / Platinum Cured Silicone Transparent Tubing



BBM Polymers is one of the major manufacturers and suppliers of FDA grade silicone tubings. Silicone Transparent Tubings are used in Food, Pharma, Chemical, Electrical, Heavy & medium Engineering, Medical, Thermal Power Stations and PSUs. We manufacturers & supply silicone transparent tubing which can resist temperatures from -50" C to + 200°C. These silicone transparent tubings are made from 100% pure Silicone Rubber. These tubings are manufactured under strict manufacturing condition facilities. We have manufacturers & supplied this product to all major industrial sectors across India.

The desirable properties of silicone tubings are it should withstand the high temperature of operation, should not impart color and odor to the materials transferred, should not deteriorate with the environmental factors and more importantly it should withstand various drugs and chemicals.

Salient Features

  • Conforms to FDA 21 CFR. 111.2600.
  • Conforms to USP Class VI requirements.
  • Completely Non-toxic and excellent heat resistant from 50° C to + 200° C.
  • Completely Transparent and Flexible.
  • Odorless and can withstand many drugs.
  • Avoids bacterial growth.
  • It replaces latex and PVC tubes.

Applications

  • In Injection and Vial Filling Machines.
  • In Peristaltic pumps.
  • For transfer of oral liquids like syrups, tonics etc.
  • For transfer of oral ointments, creams etc.

Available Size


Peroxide Cured / Platinum Cured Silicone Transparent Tubing.

Catalogue No. ID (mm) OD (mm) WT (mm)
BP-10-50 3 6 1.5
BP-11-50 4 8 2
BP-12-50 5 10 2.5
BP-13-50 6 9 1.5
BP-14-50 6 10 2
BP-15-50 6 11 2.5
BP-16-50 6 12 3
BP-17-50 7 12 2.5
BP-18-50 8 11 1.5
BP-19-50 8 12 2
BP-20-50 8 13 2.5
BP-21-50 8 14 3
BP-22-50 8 16 4
BP-23-50 8 20 6
BP-24-50 9 15 3
BP-25-50 10 16 3
BP-26-50 12 16 2
BP-27-50 12 18 3
BP-28-50 12 20 4
BP-29-50 16 24 4
BP-30-50 20 25 2.5
BP-31-50 25 31 3
