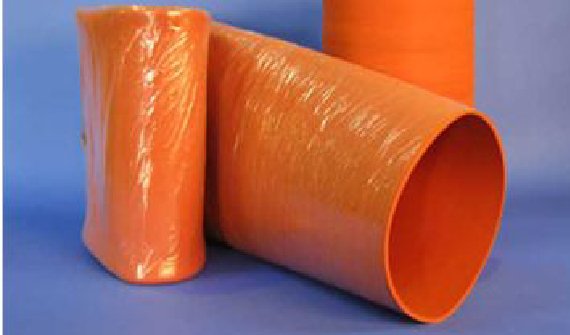

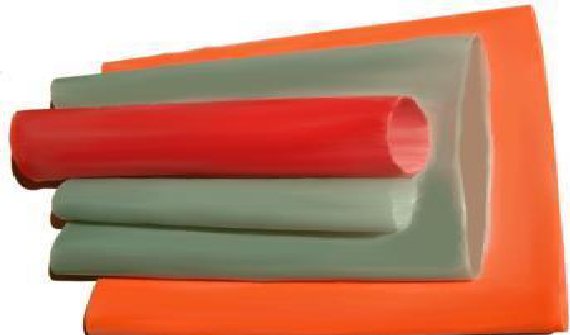

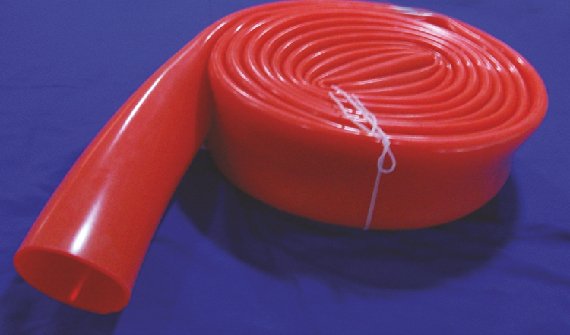

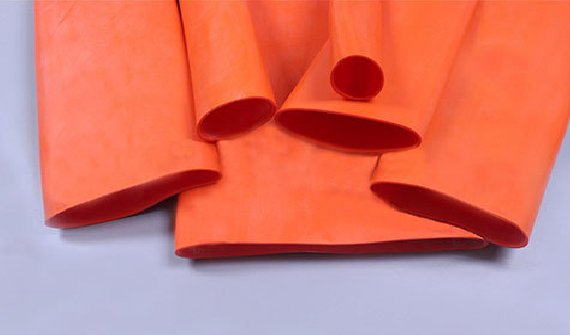

Silicone Rubber Sleeves For Corona Treatment and Electrical Applications.



BBM Polymers treatment Rubber Sleeves are chemically stable with no harmful toxic or physiological effects. Electrically insulating and formulated for maximum resistance to ozone and corona discharge. Die electric strength of normal silicone sleeve is around 22 Kv/MM. We manufacture silicone sleeves by fully automatic microwave continuous curing systems. We ensure uniform diameter throughout and nice surface finish. Suitable for continuous operation at 180°C and intermittent operation at higher temperatures without loss of mechanical and dielectric properties. Resilient and flexible for ease of installation onto treatment rolls. Low flammability and low smoke in the event of fire.

Salient Features

  • Excellent heat resistant from -80°C to + 250°C.
  • Ozone and Corona discharge resistance.
  • Hardness: 60-70 Shore A.
  • Good Electrically Insulation.
  • Having high dielectric strength 250-500 Volts/mm.

Applications

  • Used for Corona treatment process.

Available Size


Silicone Rubber Sleeves For Corona Treatment and Electrical Applications.

Roller Diameter ID Wall Thickness
2" - 50mm 48 3
2.5" - 60 mm 58 3
3" - 76 mm 72 3
4" - 100 mm 98 3
6" - 156 mm 150 3
